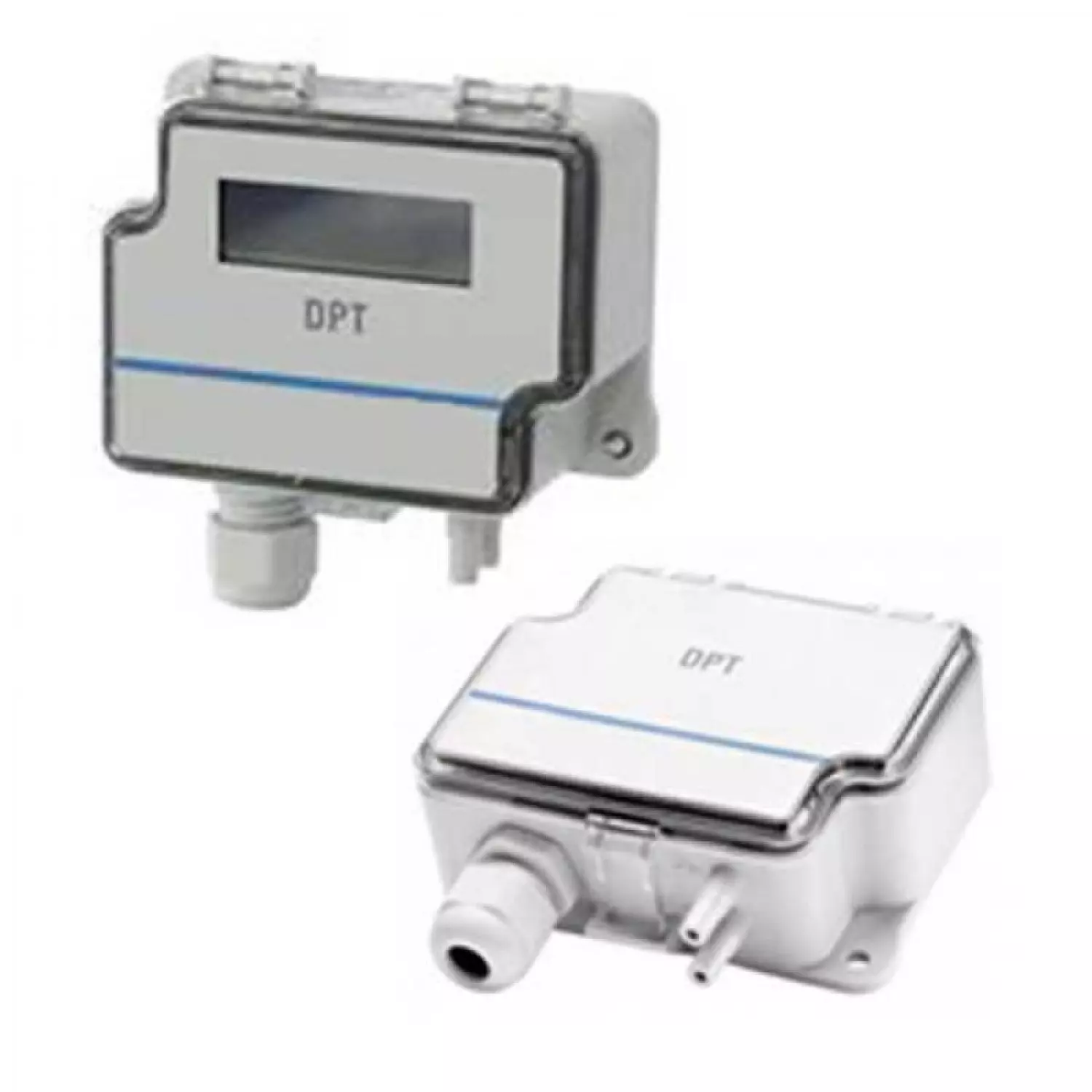

CARE-DPT250-R8-3W
Principle : Diff . Pressure Transmitter
Measuring Range :
Gauge Pressure : 0 ~ 7000 Pascal
Compound Pressure : -100 Pa ~ 0 to 100Pa
Max. Pressure : 30 KPa
Accuracy : ±1.0 % F•S
Output signal : 4~20mA DC, 0~(10)V Selectable
Power supply : 18 ~ 36V DC (STD. 24V DC)
Specification :
Measuring unit : Selectable by jumper (PA, kPa, mbar, inchWC, mmWC, psi)
Display : Without Display WITH LCD Display
Materials
Housing: ABS
• Cover: PC
• Pressure connections: ABS
Weight : 150 gm
Op. Temperature : -10°C to +50°C
